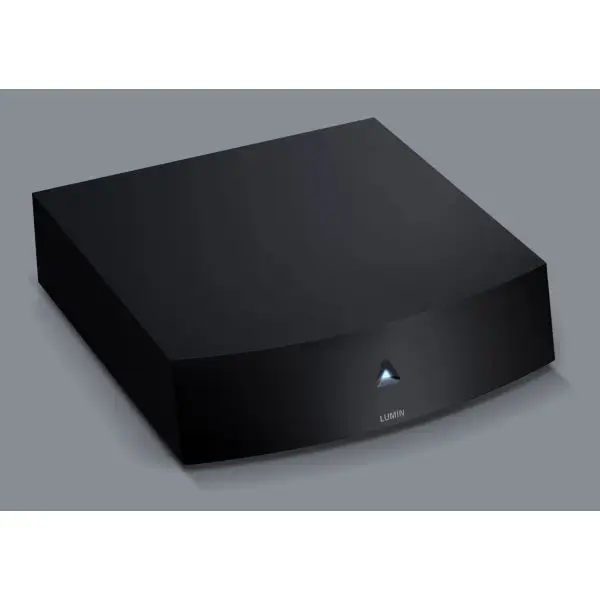

Lumin Amp

Lumin Amp
Looking for the perfect partner for your LUMIN Music Streamer? Look no further. Engineered to let your LUMIN sing!

WHY LUMIN AMP
Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.

Matched styling.
Unmatched performance.
Multi-Stage transistors amplifier
Dual Mono power supply and amplifier design
Fully discrete voltage and current gain stages
DC-coupled signal path
Class AB operation
High input impedence and sensitivty for direct DAC drive
Intelligent bias and thermal management
Stereo / Dual Mono / Bridged operation
CNC single billet aluminium construction
600VA custom toroidal transformer
Built-in overload, overheat and DC protection

True Dual Mono design throughout
Keeping the design Dual Mono all the way from the power supply delivers full power simultaneously from both channels and keeps crosstalk to an absolute minumum.
In LUMIN Amp, each channel is a mirror image of the other.

Discrete Transistors
Fully discrete voltage and current gain operating in class AB to deliver the finest details with the lowest distortion from your music.

Custom low-noise toroidal power supply
LUMIN Amp features a unique completely separate dual mono power supply design.
The ultra low noise design features advanced voltage regulation circuitry.

Tekniske specifikationer:

OPERATING MODE: (selectable)
Stereo, Dual Mono or Bridged mode

INPUT: (selectable)
1 x XLR pair (pin 2 hot), 1 x RCA pair

POWER:
160W per channel into 8Ω
320W per channel into 4Ω
640W into 8Ω (Bridged)

POWER SUPPLY:
Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz

POWER CONSUMPTION:
Standby <0.5W
Idle 40W
Max 700W

FREQUENCY RESPONSE:
20hz - 40000hz ± 0.1db

SIGNAL TO NOISE RATIO:
103db, unweighted

INPUT IMPEDANCE:
200kΩ Balanced (XLR)
100kΩ Unbalanced (RCA)

OUTPUT IMPEDANCE:
0.1Ω

INPUT SENSITIVITY:
1.16Vrms

GAIN:
+26dB (Stereo, Dual Mono)
+32dB (Bridged)

PROTECTION:
DC, overload and overheating protection

FINISHES:
Black anodized brushed aluminium or Raw brushed aluminium

CONSTRUCTION:
CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate

DIMENSIONS:
350mm (W), 374mm (D), 104mm (H)

WEIGHT:
19kg
